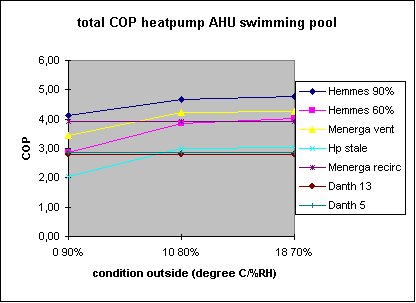

| Heatpumps in airhandling units of
pools |
|
|
|
|
|
|
|
|
| COPchiller |
4 |
5 |
COPheatpump
max |
|
|
|
Hemmes 90% |
Hemmes 60% |
Menerga vent |
Hp stale |
Menerga recirc |
Danth 13 |
Danth 5 |
|
|
0 90% |
4,12 |
2,88 |
3,43 |
2,05 |
3,93 |
2,81 |
2,85 |
|
|
10 80% |
4,65 |
3,84 |
4,21 |
2,99 |
3,93 |
2,81 |
2,85 |
|
|
18 70% |
4,77 |
4,02 |
4,26 |
3,03 |
3,93 |
2,81 |
2,85 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Menerga |
unit
like thermocond with 2 heatexchangers (assumed at 60% temp.efficiency) in
serie |
|
| Menerga
circ. Cooler in the loop : 2 heatexchangers than cooler then 2
heatexchangers. |
|
| Menerga
vent. Same cooler but no loop. Freshair through two heatexchangers and return
air throug two heatexchangers and cooler |
|
| Geahappel |
like menerga circ but now with
heatpipe instead of two crossflowheatexchangers in serie |
|
| Dantherm |
DAN AF unit without heatexchangers
but with evaporator and condensor in
serie and extra condensor for surplus to water. |
| Hemmes 90% |
Hemmes unit with two heatexchangers
with 90% efficiency (one for heat regain and one for dehumidification) |
|
| Hemmes 60% |
Hemmes unit with two heatexchangers
with 60% efficiency (one for heat regain and one for dehumidification) |
|
| HP stale |
Heatpump on the exhaust stale air
and no heatexchangers |
|
|
|
|
|
|
|
|
|
|
|
|
